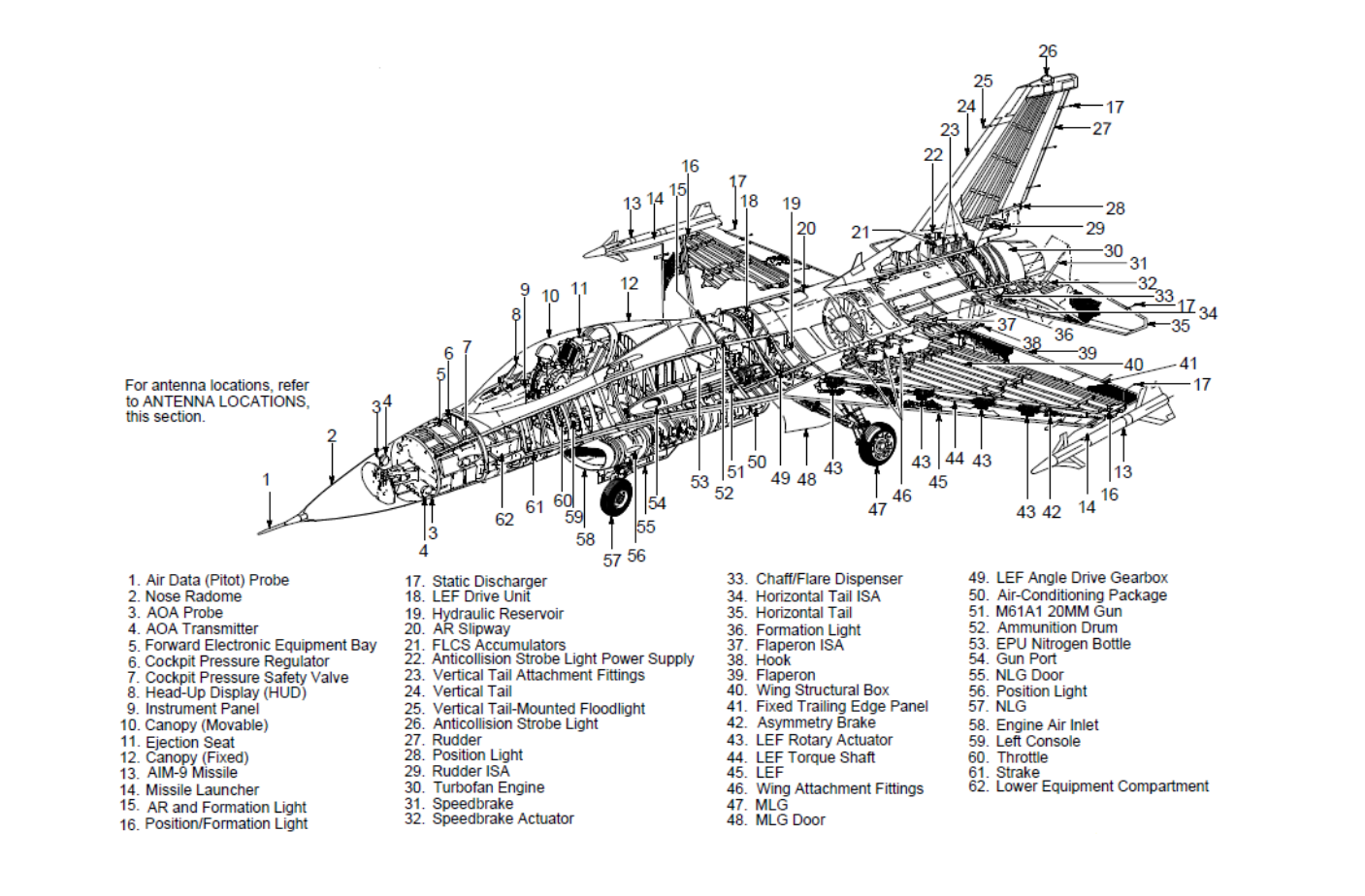

- single engine, single seat, multirole tactical fighter
- full air-to-air and air-to-surface combat capabilities
- flaperons on trailing edge of wing combine flaps and ailerons functions
- vertical tail w/ twin ventral fins gives directional stability
- control surfaces actuated by hydraulics directed by fly-by-wire system

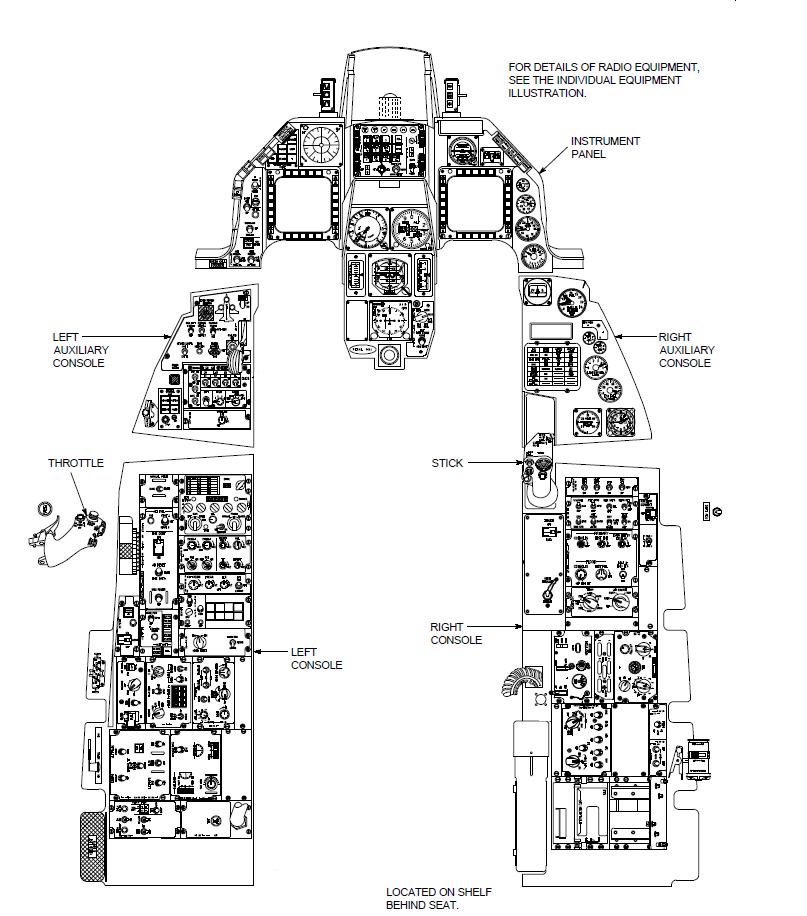

Cockpit
Transclude of f16a_mlu.tifGoing back-to-front, left-to-right:
Left Console
Aft

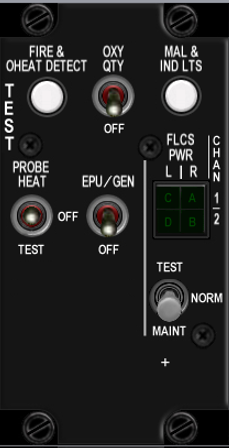

Test

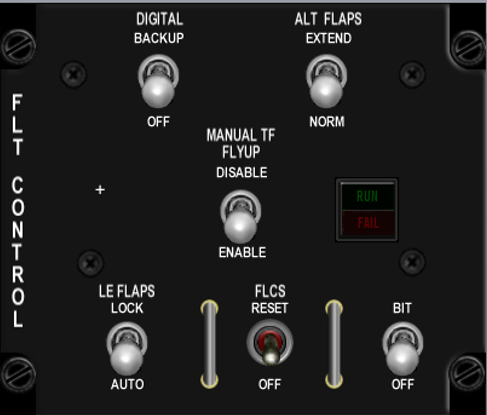

Flight Control

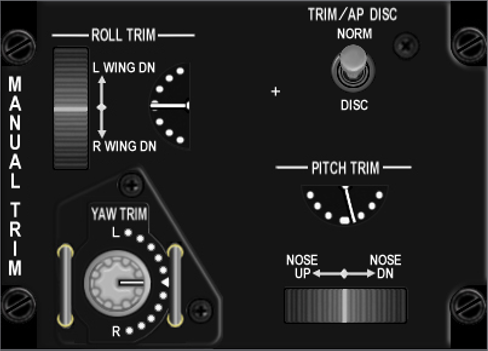

Manual Trim

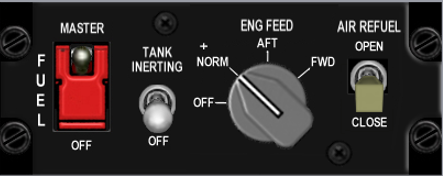

Fuel

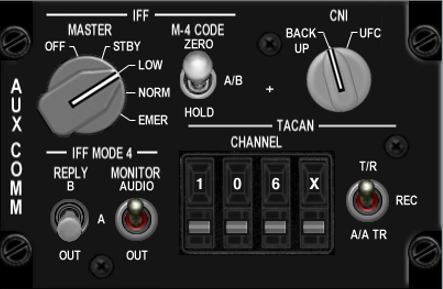

Auxiliary Comm (IFF)

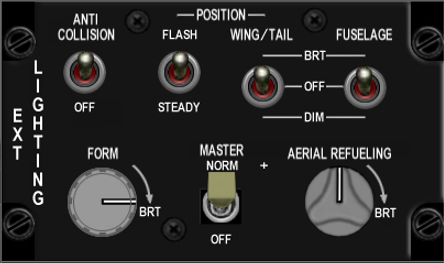

External Lighting
Fwd

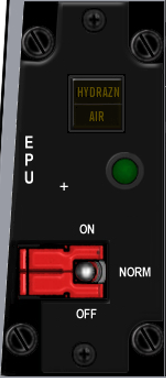

Emergency Power Unit
Electric

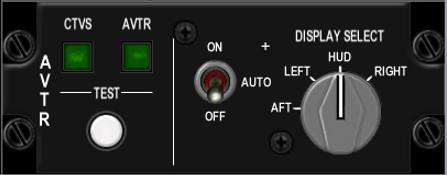

AVTR
- switch records ACMI, TACview tapes to review flights
- auto records upon weapon fire
- on records all the time

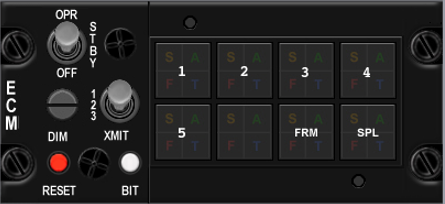

ECM

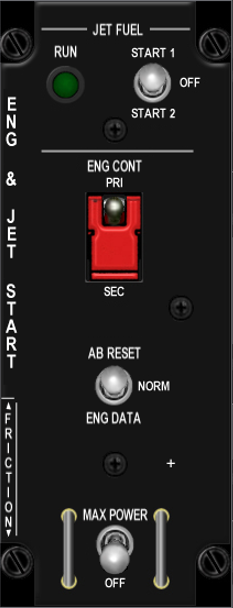

Engine and Jet Start
Manual Pitch

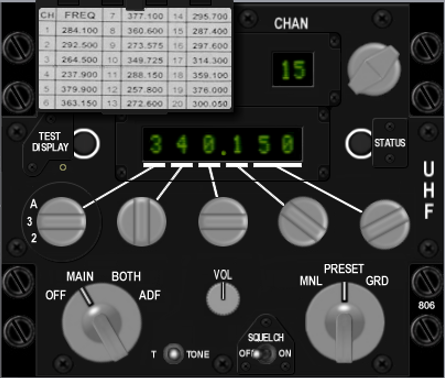

UHF Backup

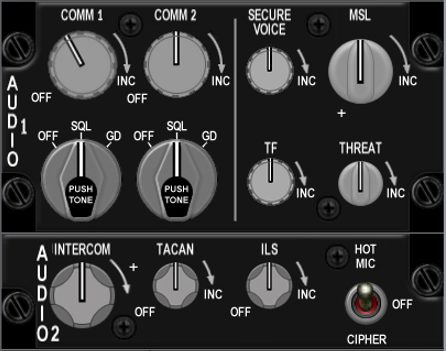

Audio 1 and 2
Left Auxiliary Console
Threat Warning AUX

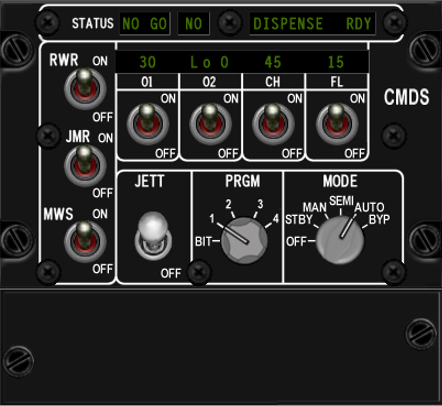

Countermeasures Dispenser Set (CMDS)

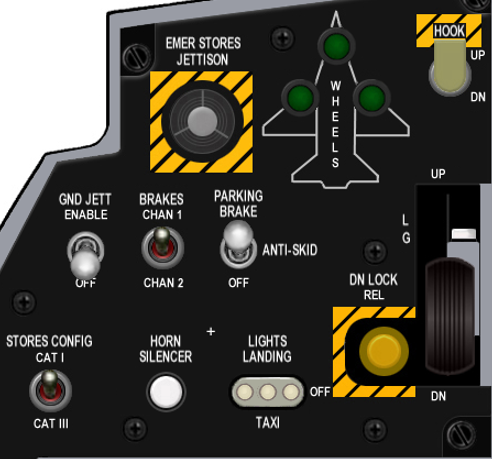

Gears and Stores Management
Instrument Panel
Upfront Controls (UFC)

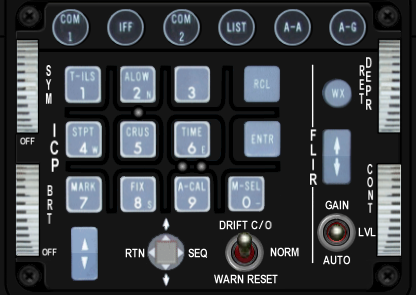

Integrated Control Panel (ICP)
Data Entry Display (DED)

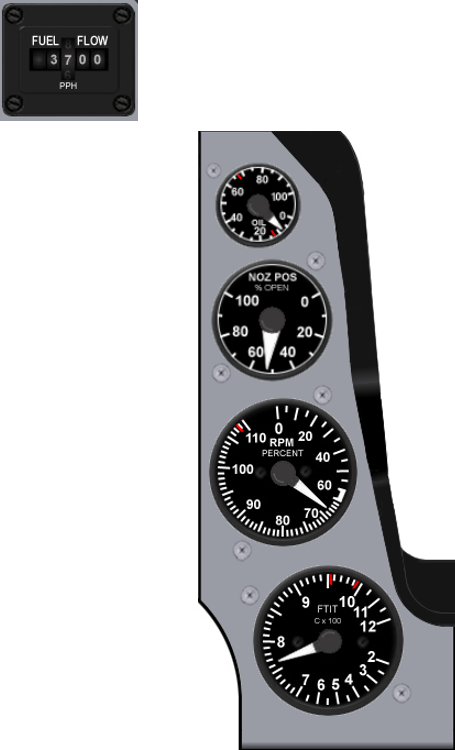

Engine Controls Gauges
